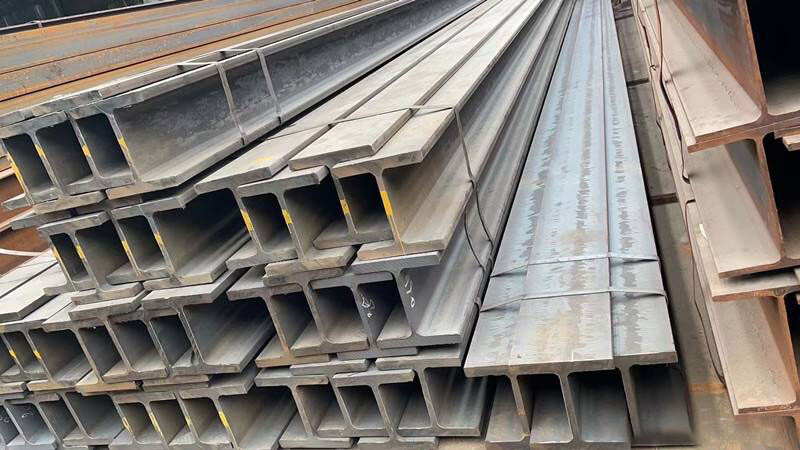

I-beam, also known as steel beam, is a long steel bar with an I-shaped cross-section. Its main feature is its unique I-shaped cross-section, which makes I-beams excellent in terms of load-bearing capacity and structural stability. I-beams are mainly divided into several types: ordinary I-beams, light I-beams and wide-flange I-beams (also called H-beams).

Classification and characteristics of I-beam

1.Ordinary I-beam: It is the most common type of I-beam. It has standard cross-sectional dimensions and performance requirements and has formed a national standard.

2.Lightweight I-beam: Compared with ordinary I-beam, its flange is narrower and the web is thinner, so it is lighter and suitable for occasions with strict weight requirements.

3.Wide-flange I-beam (H-shaped steel): It is characterized by two parallel legs and no slope on the inside of the legs. The flange is wider, providing a larger load-bearing area and better stability. Wide flange I-beam is rolled on a four-roll universal rolling mill, so it is also called "universal I-beam".

Advantages of I-beam

1. Flexible design and easy processing: I-beams are highly designable and easy to cut and weld. Users can adjust the length and shape of I-beams according to their own needs to meet different engineering needs.

2. Aging resistance and long service life: The raw material of I-beam is mainly steel. Its impact resistance and wear resistance are better than those of other material substitutes, so its service life is also longer.

3. Light weight and convenient construction: The special structure of I-beam makes it lighter in weight while having the strength and load-bearing capacity of other profiles. It is easier to transport during construction, which helps save construction time and improve the construction period.

4. Beautiful appearance: From the appearance point of view, the I-beam is symmetrical from top to bottom, left and right, which is in line with the public's aesthetic concept.

5. Other characteristics: I-beam also has the characteristics of insulation, good magnetic permeability, fire retardant and insulation. These characteristics make it have better application effect in specific occasions.

Application of I-beam

The application range of I-beam is very wide, covering almost every industry field. The following are some main application scenarios:

1. Construction industry: I-beam is an important part of the building structure. It can be used in beams, columns, brackets and other structures to provide reliable support and load-bearing. It is often used to construct the main structure of large buildings, such as bridges, high-rise buildings, factories, etc. In addition, I-beams can also be used as auxiliary structures, such as floor slabs, support frames, railings, etc., to provide necessary support.

2. Manufacturing industry: In the manufacturing industry, I-beams can be used to manufacture various machinery and equipment, such as cranes, conveyor belts, machine tools, etc. They can withstand high loads and vibrations, ensuring equipment stability and reliability.

3. Transportation industry: In the transportation industry, I-beams can be used to manufacture vehicles, ships, airplanes and other means of transportation. They can provide sufficient structural strength and stability to ensure traffic safety.

4. Energy industry: In the energy industry, I-beams can be used to manufacture oil, natural gas and other pipelines, as well as brackets and structural parts for power plants. They can withstand high pressure and high temperature, ensuring safe and stable transmission of energy.

5. Agricultural field: In the agricultural field, I-beams can be used to manufacture farm tools, tractors and other equipment, as well as structural parts of agricultural buildings. They can provide sufficient strength and durability to ensure efficient and stable agricultural production.
